Schneider Switchgear – Overview

Have a part number?

Enter the model or order code and we will check price and availability.

Overview

EKA is a dealer and supplier of Schneider Switchgear in India. We supply Schneider Switchgear to customers in Chennai, Bangalore, Pune, Mumbai, Ahmedabad, Hyderabad, Delhi and other locations across India — share a part number or nameplate for price and availability.

In today’s world of technology and automation, a reliable power supply is essential for smooth operations in residential, commercial, and industrial settings. Power fluctuations can lead to poor performance and damage to equipment such as motor starters, servo motors, and other systems.

Medium Voltage Switchgears are designed to stabilize irregular power flow. They protect connected devices by controlling, metering, and regulating the flow of electricity in the distribution system.

These devices are typically enclosed in metal structures. When combined, they are known as a switchgear line-up or assembly. Schneider Electric’s medium voltage switchgear operates between 3 kV and 36 kV, making it ideal for motor protection.

Our solutions help ensure stable operations, reduce downtime, and prevent damage caused by inconsistent power—improving overall efficiency and reliability.

Schneider Switchgear

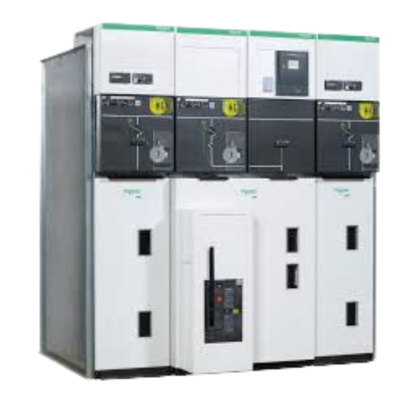

Schneider Switchgear - SM6-24

Schneider Switchgear - SM6-24

The EcoStuxure-ready SM6-24 switchgear elevates substation monitoring to new heights. It detects low quality electrical connections faster with thermal monitoring, extends the lifespan of your equipment with environmental monitoring, and collects data on circuit breaker functionality. Provides unprecedented visibility and information at your fingertips to keep your equipment running and maintenance costs low.

It is a critical component of the EcoStruxure Power architecture, combining with the most advanced communication and automation technologies to function as an IoT linked MV panel.

Key Benefits

  • 24/7 connectivity enables real-time data for effective decision making
  • Reduced downtime and optimised maintenance costs
  • Reduced risks for staff and equipment with internal arc flash detection and nearby operation

Features

  • Containing fixed or withdrawable circuit breaker, using SF6 or vacuum breaking technology, switch-disconnector, and contactor
  • Rated current 400, 630, and 1250 A - Short-circuit current up to 25 kA
  • Internal arc withstand: 12,5 kA/1s and 16 kA/1s, IAC: A-FL and A-FLR. Additional internal arc withstand for 20 kA/1s, IAC A-FL and A-FLR upwards exhaust
  • Sepam and VIP relays
  • Easergy T200S telecontrol interface
  • Flair fault passage indicator

Applications

  • Buildings
  • Industry
  • Water and Wastewater
  • Data centres & Networks
Schneider Switchgear - SM6-36

Schneider Switchgear - SM6-36

The SM6 range is a comprehensive and upgradable offer of highly reliable Air Insulated modular units for all your MV secondary underground distribution applications. Combining flexibility to the simplicity of installation and operation,

Key Benefits

  • 24/7 connectivity enables real-time data for effective decision making
  • Reduced downtime and optimised maintenance costs
  • Reduced risks for staff and equipment with internal arc flash detection and nearby operation

Features

  • Containing fixed circuit breaker using SF6 breaking technology, switch-disconnector, and fuse-switch
  • Rated current 630 and 1250 A
  • Short-circuit current up to 25 kA
  • Internal arc withstands 16 kA/1s, IAC: A-FL
  • Control, monitoring, and protection devices: providing protection of your installations, continuity of electrical supply, and reducing downtime:
  • Sepam relays
  • A range designed with telecontrol in mind
  • Flair fault passage indicator
  • SM6 is an essential part of the EcoStruxure Power architecture, it combines with the latest communication and automation devices to act as an IoT-connected MV panel. It integrates seamlessly with other innovative, interoperable products, unlocking new opportunities in power distribution.

Applications

  • Buildings
  • Industry
  • Water and Wastewater
  • Data centres & Networks
Schneider Switchgear - Pix 36

Schneider Switchgear - Pix 36

Compact and Withdrawable Air insulated switchgear with Vacuum or SF6 insulated circuit breakers

Key Benefits

  • Reduced width of 1000 mm providing space and civil cost saving
  • Fully interlocked and comprehensive operation from the front
  • Environmentally compatible, easy to recycle

Features

  • Ratings up to 36 kV / 2000 A / 25 kA
  • Equipped with the new HVX embedded pole vacuum circuit breaker, or the type FP SF6 circuit breaker.
  • Isolated busbar can be extended on both sides
  • Rear cable access
  • Floor rolling truck
  • Current and voltage transformers on busbar or cable sides

Looking for a specific Schneider model?

Send the order code, a photo of the nameplate or your full list — we confirm the exact variant before quoting.

Schneider Switchgear - Gha

Schneider Switchgear - Gha

GHA is a Gas-Insulated Switchgear that combines simplicity, intuitiveness, and high reliability in a single package, bringing improved safety and performance to MV distribution and providing a high-performance level with an optimised design

Key Benefits

  • Intelligent Gas-Density System
  • Mechanical interlocks
  • No gas handling during erection, extension work, and panel replacement
  • Ready-to-connect
  • Innovative fault-tolerant busbar link “B-link”
  • Cable outer-cone connection system
  • Intuitive operator guidance
  • Compact footprint
  • Optimised dimensions
  • Recovering valve
  • Easy to recycle

Features

  • Gas-insulated switchgear for MV primary distribution
  • Rated up to 40.5 kV, 4000 A, 40 kA - 3 s
  • Single or double busbar
  • Designed for “next to wall” installation
  • Delivered ready to connect
  • Innovative B-Link busbar
  • Inner and outer cone cable connection
  • Current and voltage transformer on busbar and cable side
  • Available as a 1- and 2-phase solution for Railway application
  • Intelligent Gas Density Information System (IDIS)

Applications

  • Buildings
  • Industry
  • Wind power and photovoltaics
  • Mining, minerals and metals
  • Oil and gas
  • Transportation
  • Utilities
Schneider Switchgear - PremSet

Schneider Switchgear - PremSet

Part of our SF6-free portfolio of Medium Voltage (MV) switchgear, PremSet features Shielded Solid Insulation System (2SIS), with all live parts, encapsulated, shielded, and earthed. PremSet uses air-based vacuum technology for breaking, which make this MV switchgear a sustainable choice for your next MV project.

Key Benefits

  • Smart grid distributed intelligence: Advanced protection, control, and monitoring which is fully integrated for increased dependability and energy efficiency.
  • All live parts are insulated and screened to reduce risks in service life, while SF6-free technology adds peace of mind.
  • Simple, flexible, modular, and functional: SSIS technology makes it simple to install and use, with operator-friendly switchgear and optimised service.

Features

  • Circuit breaker and switch-disconnector using vacuum technology
  • Rated PF withstands voltage: 42/48 kV 1mn
  • Rated BIL withstands voltage: 95/110 kV
  • Rated busbar current: 630A and 1250A
  • Rated max short-time withstand current: 25 kA x 3s
  • Cable earthing switch: 25 kA, M0, E2
  • Degree of protection: IP3X
  • Dimensions W x H x D (mm): 375 x 1550 x 910

Applications

  • Buildings
  • Industry
  • Utilities
Schneider Switchgear - Gma

Schneider Switchgear - Gma

Our experts have been developing and manufacturing primary MV Gas-Insulated Switchgear for over 30 years, with tens of thousands of cubicles installed. GMA offers optimised, affordable, and customised solutions to meet every need based on this experience.

Key Benefits

  • Compact and simple design to optimise room dimensions
  • Flexible installation
  • Cost-effective GIS switchgear
  • Cubicles all accessible from the front
  • 25% less floor space and 30% less volume than existing GIS switchgear of the same performance class
  • Spacious metal-enclosed cable compartment easily accessible
  • Designed for reduced risk while operating
  • Internal Arc compliant to IAC AFL 1s as standard
  • IP 65 protection of the gas-filled compartments with live components
  • Potential dielectric sources of danger minimised
  • Clear operating interface, embedded mechanical interlocks & disconnectable VTs
  • High operating reliability and versatility
  • Factory assembled, type tested 'plug and play'
  • MV parts are maintenance-free with very low sensitivity to environmental conditions

Features

  • Our GMA Gas-Insulated Switchgear intends to simplify the life of our customers by:
  • Being efficient to provide an optimised return on investment.
  • Offering easy & simple interfaces to operate.
  • Help improve safety.
  • GMA fulfils those demands through its compact, friendly user and digitised design.
  • Ratings up to 24 kV 2500 A and 31.5 kA
  • Vacuum circuit Breaker design
  • Sealed for Life gas-insulated system
  • Internal Arc Classification (IAC) AFL(R) 1 s.

Applications

  • Power generation
  • Industry
  • Infrastructures
  • Oil and Gas
Schneider Switchgear - MCset 1-2-3

Schneider Switchgear - MCset 1-2-3

Designed to be modular, flexible, and easily upgraded, MCSet Active comes in a range of options with scalable sensors, condition monitoring and control features according to your facility’s needs.

Paired with EcoStruxure Service Plan for optimised predictive maintenance of your critical equipment and ultimate visibility of asset health and lifespan.

Key Benefits

  • Remote digital operations help reduce operator risk
  • High-quality design with an inner cradle for breaker operations
  • Optional arc-flash detection
  • Simple operation with direct access to a mechanical pushbutton on the front door
  • Diverse range of factory options to meet your needs
  • Latest digital features to simplify ownership and predictive maintenance while saving time
  • Move from time-based to condition-based maintenance to save time and money
  • Take benefit from optimised predictive maintenance and reduce unplanned downtime with EcoStruxure Service Plan

Features

  • High-performance breaking devices
  • Latest protection and control systems
  • Designed and tested for internal arc resistance
  • Technology: Vacuum or SF6 gas (SF6 circuit breaker for high ratings)
  • Standard: IEC
  • Rated voltage: Up to 17.5 kV
  • Busbar system: single
  • Rated current busbar: Up to 4000 A
  • Rated operational current: Up to 4000 A
  • Short circuit rated current: Up to 50 kA
  • Internal arc classification: Up to AFLR 50 kA/1s
  • Loss of service continuity LSC 2B
  • Partition class: PM

Applications

  • Data Centres
  • Food and Beverage
  • Infrastructures
  • Oil and Gas
  • Mining, Mineral and Metals
  • Marine
