Siemens · Converters
Siemens Converters Dealer & Supplier in India
Price and availability for Siemens Converters — share a part number, nameplate photo or BOM and EKA will confirm the exact model and send a quotation.
- Part-number enquiries
- Replacement & obsolete parts
- Multi-line BOM quotes
- Pan-India supply from Chennai

Have a part number?
Enter the model or order code and we will check price and availability.
Overview
EKA is a dealer and supplier of Siemens Converters in India. We supply Siemens Converters to customers in Chennai, Bangalore, Pune, Mumbai, Ahmedabad, Hyderabad, Delhi and other locations across India — share a part number or nameplate for price and availability.

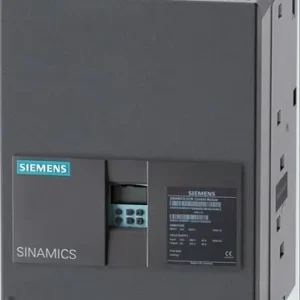

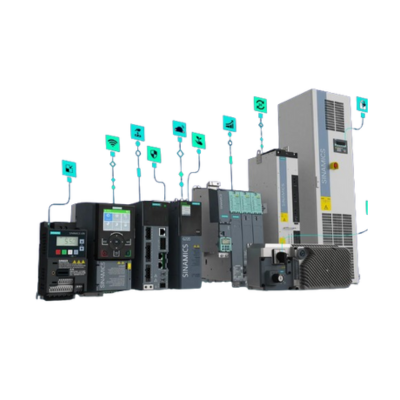

With SINAMICS variable frequency drives, you can address every application and operate synchronous or induction motors. Our drives with integrated safety can be centrally installed in control cabinets, mounted on walls or decentrally. They operate with energy-saving performance, whether for pumping, ventilating, moving, positioning, processing or machining. SINAMICS – simply my drive!
SINAMICS G220 is the new high-performance variable frequency drive designed to meet current and future challenges in every industry. As the first SINAMICS drive to join the Siemens Xcelerator portfolio, SINAMICS G220 is equipped with the necessary functions to make your applications more
Siemens Converter

Siemens Converter - Protocol Converter
TS… series Protocol Converter provides a flexible communication interface to the building management system (BMS) for streamlined collection and monitoring. Supports LMV3, LMV5, RWF55, and all TS… Series Lead Lag Master Panel, Touchscreen Kits, Combustion Enclosures, and Deaerator/Surge Panels.
Highlights
- Converts Modbus/RTU to BACnet/IP, BACnet MS/TP, Metasys N2, Modbus TCP/IP or LonWorks
- Allows simultaneous connection of up to 64 devices via serial connections
- Allows simultaneous connection up to 12 TS… Series devices via Ethernet Modbus
- A TS… series protocol converter provides a flexible communication interface to the building management system (BMS) for streamlined data collection and monitoring.
Specifications
- Converts native Modbus/RTU to BACnet/IP, BACnet MS/TP, Ethernet/I/P Metasys N2, Modbus TCP/IP, or LonWorks
- Allows simultaneous connection of up to 64 devices via serial connections, and up to 12 devices via Ethernet Modbus TCP/IP connections
- Easily configured using web browser
- 61 data points per LMV3...
- 153 data points per LMV5...
- 13 data points per RWF10
- 57 data points per RWF40
- 73 data points per RWF55
- 364 data points per TS Series Touchscreen Kit
- 23 data points per TS Series Lead/Lag Master
- 85 data points per TS Series Lead/Lag Master (from each boiler)
- 52 data points per TS Series Deaerator/Surge Tank Master
Appliactions
- TS… protocol converter kits are suited for applications with BMS protocol other than Modbus TCP/IP or RTU. All SCC products that communicate using Modbus/RTU are compatible.

Siemens Converter - IP Converter
Specifications
- Input: 4-20mA
- Output: 3-15 psig
- 250KPA MWP 15VDC MAX
- Supply Pressure: 20 psig (35 psig for 771-8_ _ _)
- Zero Offset Adjustment: +40% and –20% of span
- Output Capacity: Standard: 0.16 scfm Boosted: 2.0 scfm
- Supply Pressure Effect: Less than 2% of span (change of output for supply change from 18 to 22 psig)
- Temperature Range:-40 to 180°F (-40 to 82°C)
- Electrical Connections: Enclosed terminal block, 1/2″ threaded
- Enclosed: NEMA 3RNEMA 4 via conduit ven
- Performance Specifications

Siemens Converter - Media Converter

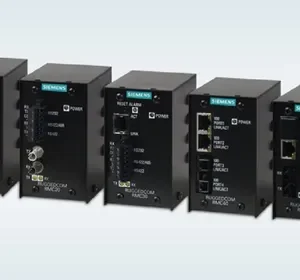

RUGGEDCOM Media Converters are part of our industrial network communications portfolio. The units are industrially hardened and specifically designed to operate reliably in electrically harsh and climatically demanding environments such as those found in electric utility substations and factory floors.
RUGGEDCOM Media Converters offer a wide range of benefits from reduced installation, configuration, and management costs to an improved ROI on legacy devices. They combine the advantages of conventional copper data cables with those of fiber optic cables providing copper-to-fiber, serial-to-fiber or serial-to-IP conversion and bridging the gap between copper and fiber-optic network segments.
Copper data cables are vulnerable to electromagnetic interference. Using RUGGEDCOM Media Converters ensures the data integrity and provides lossless and interference-free data transmission for mission critical applications.
RUGGEDCOM Media Converters link the flexibility of Ethernet devices to the spectrum of fiber optics.
Benefits
- Media and speed conversion
- Serial (RS232/RS422/RS485) to fiber conversion
- Serial to Ethernet conversion including Modbus RTU to Modbus TCP conversion
- Immunity to electro-magnetic interference
- Industrial temperature range of –40 to 85 °C
- Simple Plug and Play Operation
- High Performance Ethernet Switching
- Link Pass Through support
- Configuration, operation and maintenance cost saving
Applications
- IEC 61850-3 and IEEE 1613 (electric power)
- IEC 61000-6-2 (generic industrial)
- NEMA TS-2 (traffic control equipment)
- EN 50121-4 (railway)
- EN 50155 (on-board rail vehicles)
Looking for a specific Siemens model?
Send the order code, a photo of the nameplate or your full list — we confirm the exact variant before quoting.

Siemens Converter - AC DC Converter
The 6EP1333-2BA20 from Siemens is a SITOP PSU100S stabilized power supply. It is a high performance, single phase, AC input SITOP smart unit with 24V/ 5A output. It is a high performance, single phase, AC input SITOP smart unit with 24V/ 2.5A output. This power supplies can continuously manage 120% of the rated power with high degree of efficiency ensuring low energy consumption and minimal heat loss in the control cabinet.
Specifications
- Input supply range is 120VAC/230VAC
- Input current is 2.34A at 120V
- Short circuit protection
- Efficiency is 88%
- Temperature range from -25°C to 70°C
- Dimension is 50mm x 125mm x 120mm(W x H x D)
- CE, cULus, ATEX standards
- Minimum mounting space required due to slim design, no lateral installation clearances required
- Signalling contact for "output voltage OK" for easy integration in the plant monitoring system
- Adjustable output voltage for compensating voltage drops
Applications
- Power Management
- Industrial

Siemens Converter - M Bus Converter
The level converter WTV531-GA5060 is an interface between M-bus meters and reader systems. PC software ACT531 reads the data locally or via the Internet using an optional web server.
Highlights
- Connect up to 60 M-bus devices (max. 60 simply M-bus loads)
- Use up to six level converters on one M-bus network with a max. of 360 simple Mbus loads
- Local data read out with the ACT531 PC software via USB or the RS-232 interface
- Remote read out via M-bus web server
- Local data read out via a PXC device via the RS-232 interface
- Reads a max. 1,000 logical devices on a level converter network
- Supply voltage AC/DC 24 V
Specifications
- Operating voltage - AC/DC 24 V +/- 10 %
- AC frequency - 50/60 Hz
- Reference standard - EN13757-2 (physical layer)
- Baud rate - 300 bps…9600 bp
- Temperature - -5…+50° C
- Air humidity - 5...95 % r.h.
- Materials and colors - PC + ASA, RAL 9010 (white)
- Dimensions - 110x71x62 mm (including terminals)
Products
Catalogue
Siemens Converters in our catalogue
Next step
Get a quote for Siemens Converters
Share model numbers, quantities and delivery location. EKA confirms the exact variant and sends price and availability.
