Mitsubishi Motion Controllers Dealer & Supplier in India

Price and availability for Mitsubishi Motion Controllers — share a part number, nameplate photo or BOM and EKA will confirm the exact model and send a quotation.

  • Part-number enquiries
  • Replacement & obsolete parts
  • Multi-line BOM quotes
  • Pan-India supply from Chennai
Mitsubishi Motion Controllers – Creating Trajectories

Have a part number?

Enter the model or order code and we will check price and availability.

Overview

EKA is a dealer and supplier of Mitsubishi Motion Controllers in India. We supply Mitsubishi Motion Controllers to customers in Chennai, Bangalore, Pune, Mumbai, Ahmedabad, Hyderabad, Delhi and other locations across India — share a part number or nameplate for price and availability.

Let’s start with the basics. Motion controllers are special devices that control the engine operating modes. In other words, it’s the brain of every motion control system. As such, its task is telling the motor what to do based on the desired production outcome.

Movement Profiles and Target Positions

In fact, a motion controller contains the movement profiles and the target positions for the application, and creates the trajectories that the engine must perform to satisfy the commands. Motion control is often a closed circuit, so controllers monitor the actual path and corrects positioning or speed errors.

Feedback-Based Systems

In feedback-based systems, motion controllers take an input command sent by the user, compare it with a feedback signal from the motor and apply corrective actions so that the desired input/position and actual output/position match with little – or zero – margin of error.

Creating Trajectories

When creating trajectories for the motor (and/or actuator), the motion controller generates motion profiles. These are the sequences of position commands in relation to time that indicate to the motor where and how fast to place a load. Finally, the motion controller uses the trajectories created to generate the correct torque commands, which are then sent to the drive.

Mitsubishi Motion Controllers

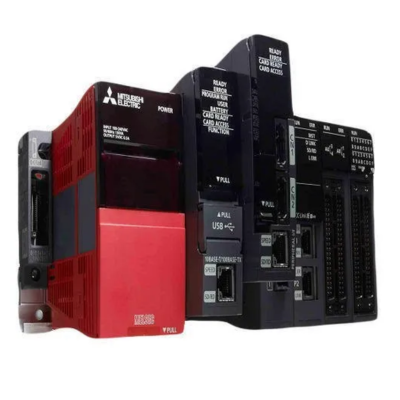

Mitsubishi Motion Controllers - MELSEC iQ-R Series

Mitsubishi Motion Controllers - MELSEC iQ-R Series

Highlights

  • You can select the appropriate mode from the two operating modes, considering the programming language or project heritage, etc.
  • Supports a consistent engineering environment that is capable of handling tasks ranging from system design to debugging and maintenance.
  • The high-performance, industry leading servo amplifiers MELSERVO-J5 series can be connected via CC-Link IE TSN.
  • Connects to various modules such as servo amplifiers and I/O modules via CC-Link IE TSN. This connectivity allows you to configure a servo system more flexibly.
  • These Motion modules with multiple-core processors enable to configure a high-speed, large system by supporting the CC-Link IE TSN real-time open network.
  • The MELSEC iQ-R series Motion module allows you to pursuit of high speed, multi-axis and ease of use, to configure a system according to the scale and application.
Mitsubishi Motion Controllers - MELSEC iQ-F Series

Mitsubishi Motion Controllers - MELSEC iQ-F Series

Highlights

  • Combined with a CC-Link IE TSN-compatible servo amplifier, the Motion module offers a high-performance servo system that improves machine capability.
  • Performs advanced motion control, such as positioning, synchronous, cam, and speed-torque control.
  • Connects remote I/O modules and FR-A800-GN inverters via CC-Link IE TSN. The data of these devices can be read/written by a CPU module.
  • Connects TCP/IP devices, enabling a flexible system configuration.
  • Possible to reuse the existing projects of the MELSEC iQ-F series Simple Motion modules (previous model).
  • The Motion module enables advanced motion control while offering cost-effectiveness.
  • The module has the capability and functions required for stand-alone/small-scale systems.
  • Maximum number of control axes: 4 axes/module (FX5-40SSC-G), 8 axes/module (FX5-80SSC-G)
  • Minimum operation cycle*1: 500 [μs]
  • Maximum number of connected modules*2: 4 modules/system
  • Compatible servo amplifiers

Manuals & documents on request

Looking for a specific Mitsubishi model?

Send the order code, a photo of the nameplate or your full list — we confirm the exact variant before quoting.
