MITSUBISHI AC DRIVES IN INDIA
Leading distributor and dealer of AC Drive from Mitsubishi in India
Overview
EKA is a leading dealer and distributor of Mitsubishi AC drives in India. We distribute Mitsubishi AC drives in Chennai, Bangalore, Pune, Mumbai, Ahmedabad, Hyderabad and Delhi.

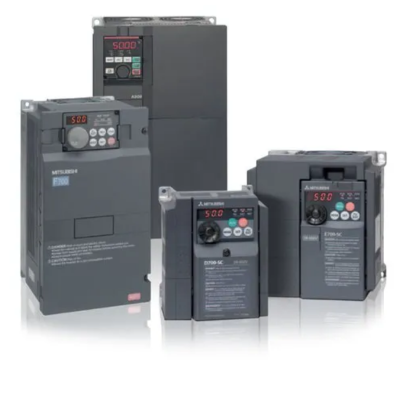

Mitsubishi AC Drive
Mitsubishi AC Drive is a high-quality variable frequency drive designed to control the speed of three-phase AC induction motors. It features advanced motor control technology, including vector control and sensorless vector control, which enable precise and efficient control of motor speed and torque.
User-Friendly Interface
The drive is equipped with a user-friendly interface that makes setup and operation easy, and it offers a range of input/output options to accommodate a variety of applications. With a compact design and built-in protections, the Mitsubishi AC Drive is well-suited for use in industrial environments, such as material handling, machine tools, and HVAC.
Advanced Diagnostic Features
Its advanced diagnostic features and fault protection systems ensure reliable and safe operation, while its energy-saving features help to reduce power consumption and operating costs.
Exceptional Performance and Durability
With its exceptional performance and durability, the Mitsubishi AC Drive is an ideal choice for anyone seeking a high-quality variable frequency drive for their motor control system.
MITSUBISHI AC Drives
MITSUBISHI AC DRIVE – A700
The A700 is a top performance drive that serves as the replacement to the A500(L) series. It offers several of the distinct technologies formerly developed for Mitsubishi Electric servo drive products, including adaptive auto-tuning that compensates for variations in load inertia automatically. This advanced drive showcases smoother operation, less interruption from downtime, and lower costs of operating. The control mode options include Velocity, Torque, and Positioning. The Real Sensorless Vector application offers torque control and Zero speed holding torque with no encoder needed.
Highlights
Includes Removable FR-DU07 control unit with a digital dial that can be used as a speed potentiometer
Optional FR-PU07-01 keypad can be mounted remotely, display HAND/AUTO, and display the value of three monitors
Wide Speed Range: 200:1 operating range is possible – even when the drive is used ‘open loop’
PLC Feature: A700 programmability provides true intelligence inside the drive – a simple solution for complex applications
Easy Gain Tuning: Compensates automatically for changes in load inertia to ensure smooth and consistent operation
USB Port: Allows simple connection to the new FR-Configurator Software for quick and easy commissioning
Power Down Braking: Keeps the motor under control even if the supply power is lost
Remote I / O Capability: All of the drive I/O can be read or controlled over a network
Brake Transistor Circuit: Included in all sizes up to 30 Hp
Integral Radio Filter: Limits Radio Noise emissions to meet EU Directive – all sizes of drive
Speed Control: with or without torque limit allows 200:1 Speed range, driving or overhauling
Open Loop Torque Control: including torque at zero speed
UL Listed for single-phase input
MITSUBISHI AC DRIVE – FR-A800
The FR-A800 is designed for unparalleled drive precision, speed control, simple startup, and versatility. Some of the outstanding features are the integrated high level PLC, USB port for programming and parameter copying, an-easy to-read control panel, optimum power usage and energy saving functions, improved system safety, three expansion slots for a range of option and supported network card. Mitsubishi Electric FR-A800 series is fully backwards compatible with the FR-A700. Parameters can be easily copied by FR Configurator2. In order to match the former machine response time, the input/output signals of the frequency inverter can be delayed.
Highlights
Real Sensorless Vector Control
Perfect autotuning of PM and IM motors
Absolute positioning & built-in PLC function
Optimum excitation contro
High flexibility by built-in PLC
Energy saving by 24 V control power supply
Easy maintenance
Applications
Pumps
Fans
Lifts and Cranes
General purpose
MITSUBISHI AC DRIVES FAULT CODE
MITSUBISHI AC DRIVES MANUAL
FAQ’s
C 200
The VFD-C2000 series is a high-level field oriented control AC motor drive with a high-performance variable-frequency technology, FOC control. It features versatile driving controls, modular design, wide variety of applications, easy maintenance, low malfunction rate, self diagnosis and competitive market price and brings customers not only the high-efficiency construction but also the most economic solution to compete with the global market.
C 2000
The VFD-C2000 series is a high-level field oriented control AC motor drive with a high-performance variable-frequency technology, FOC control. It features versatile driving controls, modular design, wide variety of applications, easy maintenance, low malfunction rate, self diagnosis and competitive market price and brings customers not only the high-efficiency construction but also the most economic solution to compete with the global market.
