SIEMENS CABLES IN INDIA
Leading distributor and dealer of Cables from Siemens in India
Overview
EKA is a supplier of Siemens Cables in India. We distribute Siemens Cables in Chennai, Bangalore, Pune, Mumbai, Ahmedabad, Hyderabad and Delhi.
Alternatively called a cord, connector or plug, a cable is one or more wires covered in plastic that transmit power or data between devices or locations. The picture is an example of what the power cord may look like for your computer or monitor. The power cord is one example of thousands of other cables found in and around computers.
Types of Computer Cables
There are two main types of computer cables:
Data Cables
Used for communication between devices.
Examples include:
DVI, HDMI, VGA – connect monitors to computers., CAT5 – used for network connections., IDE/EIDE, SATA – connect storage devices.

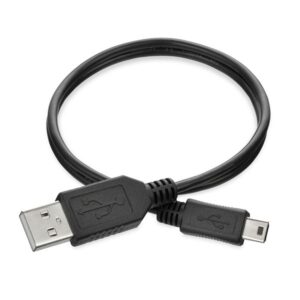

USB – connects a wide range of peripherals.
Power Cables
Used to supply power to devices.
Examples include:
Power cord – connects the computer to a power outlet., Molex cable – commonly used inside computers for powering internal components.
SIEMENS CABLES
SIEMENS CABLE – IE FC TP cable 2 x 2
Highlights
4-wire FastConnect installation cables for structured Fast Ethernet cabling with special design for fast installation
Easy stripping with the FastConnect stripping tool; the protective jacket and the braided shield are stripped accurately in one step
Connection to FastConnect products using insulation displacement
Exceeds Category 5 (Cat5e) of the international cabling standards ISO/IEC 11801 and EN 50173
PROFINET-compatible
UL approval
Different variants for different application areas
(e.g. trailing, food, marine, railways, robots)
High interference immunity thanks to double shielding
Easy length measurement thanks to printed meter markings
Time-saving due to quick and easy installation with FastConnect cables 2 x 2 to Industrial Ethernet FC RJ45 outlet (10/100 Mbps), Industrial Ethernet FC RJ45 plug 180/145/90, or IE FC M12 plug PRO 2 x 2
Versatile application due to special bus cables
Noise-immune network due to double-shielded cables and integrated grounding concept
Silicone-free, therefore suitable for use in the automotive industry (for example on paint lines)
Applications
For the construction of Industrial Ethernet networks (4-core), different cable types are offered to suit the different types of application.
In general, the listed Industrial Ethernet FC cables IE FC cable 2 x 2 must be used.

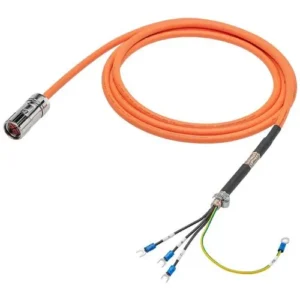

SIEMENS CABLE – Energy cables
Highlights
Different performance versions (5-wire, 4-wire and 2-wire) for various application areas
Pre-assembled M12 connecting cables for energy transfer
Rugged cable design for installation in industrial applications
UL approvals
Easy length measurement thanks to printed meter markings
Flexible application possibilities thanks to rugged cable design
Silicone-free, therefore particularly suitable for use in the automotive industry (for example on paint shop conveyors)
Applications
Different cable types are required to supply power to Industrial Ethernet/PROFINET or PROFIBUS and IO-Link devices. The listed energy cables should always be used. They are used for devices with IP65/67 degree of protection to connect the signaling contact or 24 V DC supply of the SCALANCE components (2×0.75 energy cable), for the power supply (5×1.5 energy cable or 4×1.5 energy cable) for SIMATIC ET 200SP/RF18xC and for connecting IO-Link sensors/actuators and devices.
Pre-assembled power connecting cables (M12 power connecting cable, control connecting cable) and IO-Link cables continue to be available in different lengths for the power supply.
SIEMENS CABLE – Pre-assembled IE connecting cables
Highlights
Time-saving and fault-free connection of terminal stations by means of pre-assembled and factory-tested connection cables
Reliable screen contact and strain relief are integrated
Comprehensive product range with different lengths and corresponding UL approvals and PROFINET conformity
Industrial Ethernet connecting cable M12-180/M12-180
(D-coded)
Pre-assembled connecting cable (IE FC TP trailing cable GP 2 x 2, Cat5e) for connecting Industrial Ethernet stations (such as SIMATIC ET 200AL, ET 200pro, ET 200eco PN, SCALANCE XP-200 and SIMATIC RF systems) with IP65/IP67 degree of protection, 180° cable outlet
For transfer rates of 10/100 Mbps
Industrial Ethernet connecting cable M12-90/M12-90
(D-coded)
Pre-assembled connecting cable (IE FC TP trailing cable GP 2 x 2, Cat5e) for connecting Industrial Ethernet stations (such as SIMATIC ET 200AL, ET 200pro, ET 200eco PN, SCALANCE XP-200 and SIMATIC RF systems) with IP65/IP67 degree of protection, 90° cable outlet
For transfer rates of 10/100 Mbps
Industrial Ethernet robust connecting cable M12-180/M12-180
(D-coded, IP69)
Pre-assembled connecting cable (IE FC TP robust food cable 2 x 2, Cat5e) for connecting Industrial Ethernet stations with a high degree of protection, for special use in the food and beverages industry (IP69 degree of protection), 180° cable outlet
For transfer rates of 10/100 Mbps
Industrial Ethernet connecting cable M12-180/M12-180
(D-coded, with push-pull connection system)
Pre-assembled connecting cable (IE FC TP trailing cable GP 2 x 2, Cat5e) for connecting Industrial Ethernet stations (such as SIMATIC ET 200SP with M12 BusAdapter) with IP20 degree of protection, 180° cable outlet
For transfer rates of 10/100 Mbps
Industrial Ethernet TP cord M12-180/M12-180 4 x 2 (X-coded)
Pre-assembled connecting cable (IE FC TP flexible patch cord 4 x 2, Cat7) for connecting Industrial Ethernet stations (such as SCALANCE XP-200 and SCALANCE W) with IP65/IP67 degree of protection, 180° cable outlet
For transfer rates of 10/100/1000/10000 Mbps
Industrial Ethernet TP cord M12-90/M12-90 4 x 2 (X-coded)
Pre-assembled connecting cable (IE FC TP flexible patch cord 4 x 2, Cat7) for connecting Industrial Ethernet stations (such as SCALANCE XP-200 and SCALANCE W) with IP65/IP67 degree of protection, 90° cable outlet
For transfer rates of 10/100/1000/10000 Mbps
Industrial Ethernet TP cord M12-180/RJ45-180 4 x 2 (X-coded)
Pre-assembled connecting cable (IE FC TP flexible patch cord 4 x 2, Cat7) for connecting Industrial Ethernet stations (such as SCALANCE W and SCALANCE X) for conversion from devices with IP65/IP67 degree of protection to IP20, 180° cable outlet
For transfer rates of 10/100/1000/10000 Mbps
Industrial Ethernet TP cord M12-90/RJ45-180 4 x 2 (X-coded)
Pre-assembled connecting cable (IE FC TP flexible patch cord 4 x 2, Cat7) for connecting Industrial Ethernet stations (such as SCALANCE W and SCALANCE X) for conversion from devices with IP65/IP67 degree of protection to IP20, 90° angled M12 plug
For transfer rates of 10/100/1000/10000 Mbps
Industrial Ethernet connecting cable M12-180 (D-coded)/
IE FC RJ45 plug 145
Pre-assembled connecting cable (IE FC TP trailing cable GP 2 x 2, Cat5e) for connecting Industrial Ethernet stations (e.g. SIMATIC ET 200, SCALANCE XP-200 and SIMOTION) with IP65/IP67 degree of protection, 180°/145° cable outlet
For transfer rates of 10/100 Mbps
Industrial Ethernet connecting cable M12-90 (D-coded)/
IE FC RJ45 plug 180
Pre-assembled connecting cable (IE FC TP trailing cable GP 2 x 2, Cat5e) for connecting Industrial Ethernet stations (e.g. SIMATIC ET 200, SCALANCE XP-200, RF1800 and SIMOTION) with IP65/IP67 degree of protection, 90°/180° cable outlet
For transfer rates of 10/100 Mbps
Industrial Ethernet connecting cable
IE FC RJ45 plug 180/IE FC RJ45 plug 180 2 x 2
Pre-assembled connecting cable (IE FC TP trailing cable GP 2 x 2, Cat5e) for connecting Industrial Ethernet stations (such as SIMATIC S7, ET 200SP, ET 200MP, SCALANCE X, S, M) with IP20/IP30 degree of protection, 180° cable outlet
For transfer rates of 10/100 Mbps
Industrial Ethernet connecting cable
IE FC RJ45 plug 180/IE FC RJ45 plug 180 4 x 2
Pre-assembled connecting cable (IE FC TP flexible cable GP 4 x 2, Cat6A) for connecting Industrial Ethernet stations (such as SCALANCE X, S, M) with IP20/IP30 degree of protection, 180° cable outlet
For transfer rates of 10/100/1000/10000 Mbps
Pre-assembled connecting cable (IE FC TP flexible cable GP 4 x 2, Cat6A) for connecting Industrial Ethernet stations (such as SCALANCE X, S, M) with IP20/IP30 degree of protection, 180° cable outlet
For transfer rates of 10/100/1000/10000 Mbps
SIEMENS CABLE – FC glass fiber-optic cables
Highlights
FastConnect standard fiber-optic cable for use in optical Industrial Ethernet, PROFINET and PROFIBUS networks
For all users who want to install and assemble the glass fiber-optic cables themselves over longer distances on site for office or industrial applications
Simple FastConnect LC and ST/BFOC connector assembly on site
Rugged design for industrial applications both indoors and outdoors
High interference immunity as not sensitive to electromagnetic interference
Extensive range of UL approvals
Avoidance of excessive cable lengths in the control cabinet, as the fiber-optic cables can be assembled to the right length on site
Easy installation of cables in buildings, as cables can be pulled in without connectors attached
Simple extension of installed glass fiber-optic cables via LC and ST/BFOC couplers
Devices with different connection systems (LC or ST/BFOC) can easily be connected to one another using self-assembled adapter cables
Electrical isolation of Industrial Ethernet/PROFINET/PROFIBUS devices
Unaffected by electromagnetic interference
Tap-proof: no radiation from cable
Applications
SIMATIC NET FastConnect glass fiber-optic cables are used to construct optical indoor and outdoor Industrial Ethernet/PROFINET and PROFIBUS networks. Devices with integral optical interface (LC or ST/BFOC connection technology) include optical link modules (OLM) and SCALANCE X Industrial Ethernet switches, for example.
FastConnect glass fiber-optic cables are to be assembled on site using FastConnect FC LC or FC ST/BFOC connectors. Two FC FO assembly cases are available for this purpose. They enable stripping and “cleaving” of the fiber in the assembled connector, as is familiar from PCF fiber-optic cables. For ST/BFOC connectors, the ST/BFOC coupler can be used to extend existing lines
