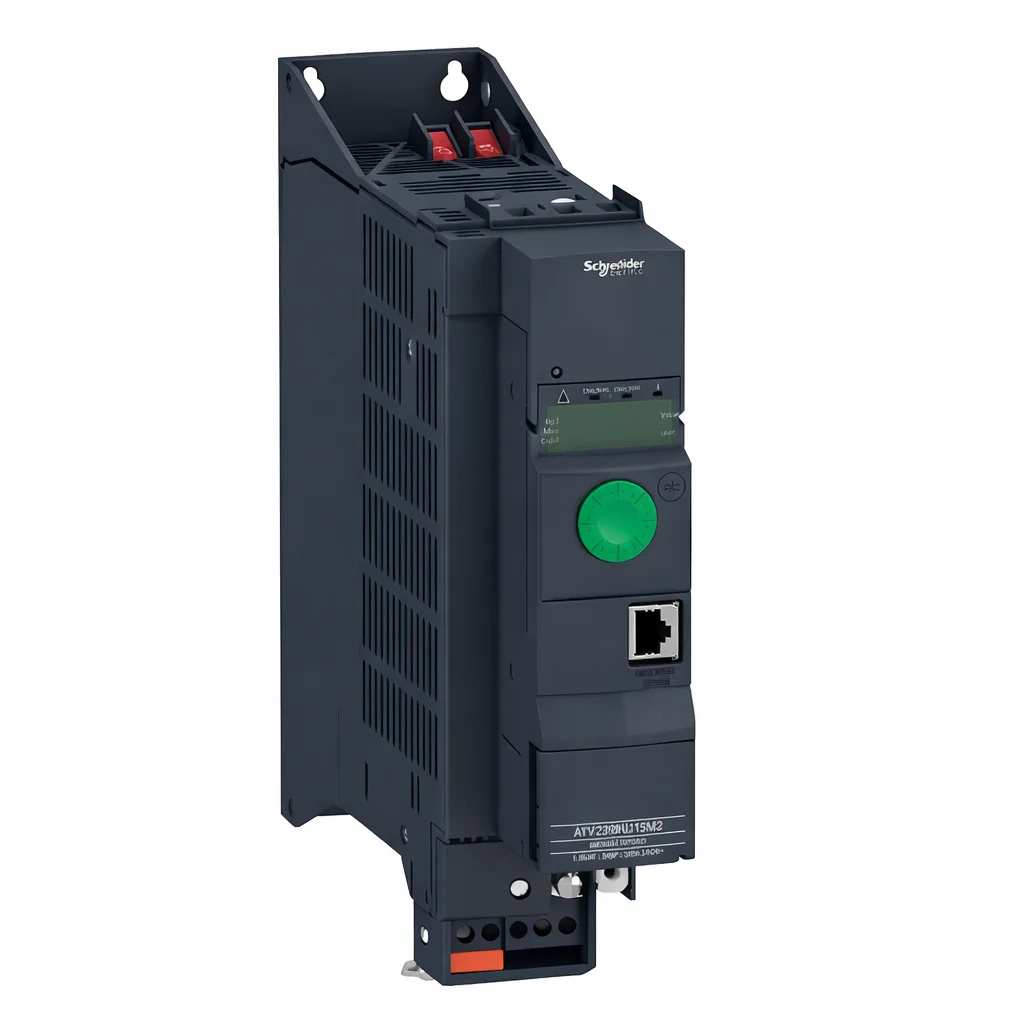

Schneider Altivar Machine ATV320 Drive

Technical Details

• Power range: 0.18 kW to 15 kW
• Voltage range: 200 V to 690 V
• Operating temperature: -15°C to 50°C without derating, 50°C to 60°C with derating
• Protection degrees: IP21, IP65, IP66, UL Type 1, UL Type 4X
• Motor types: Synchronous, asynchronous, PM, BLDC
• Control loop: Open loop for torque and speed
• Control methods:
  Sensorless vector control
  Standard V/F
  V/F 5 points
  Synchronous motor control
  Variable torque for fan and pump
  Energy-saving mode
• Safety functions: STO, SS1, SLS, SMS, GDL
• Communication: Supports Ethernet and serial-based industrial networks

Key Benefits

• Compact design for easier machine integration
• Suitable for simple and advanced machine applications
• Supports synchronous, asynchronous, PM, and BLDC motors
• Embedded safety functions for safer machine operation
• Advanced connectivity with Ethernet and serial-based networks
• Robust design for harsh environments
• Coated printed circuit boards for improved durability
• Supports ambient temperatures up to 60°C with derating
• Helps reduce installation cost and improve machine lifecycle

Applications

• Altivar Machine ATV320 is suitable for:
• Packaging machines
• Material handling systems
• Machine tools
• General OEM machinery
• Hybrid automation systems
• Compact machine frames
• Industrial machines requiring advanced safety and connectivity

Why Choose

• Made for OEM machine applications
  The Altivar Machine ATV320 drive is designed for machine builders who need a practical and flexible drive solution.
• Compact and easy to install
  The ATV320 AC drive fits different machine layouts and helps save installation space.
• Strong connectivity options
  The Schneider ATV320 drive supports common Ethernet and serial communication networks for easier system integration.
• Built-in safety features
  The Schneider Altivar Machine drive includes embedded safety functions that help simplify machine compliance and improve operational safety.
• Reliable in demanding environments
  The ATV320 VFD drive is built with coated boards and robust construction for dependable performance in harsh conditions.
• Flexible motor control
  The Schneider ATV320 inverter drive supports multiple motor types and control methods for a wide range of machine requirements.
• Supports machine lifecycle value
  This drive helps reduce installation effort, improve serviceability, and extend machine usability over time.

FAQ

1. What is Altivar Machine ATV320 drive used for?
Altivar Machine ATV320 drive is used in OEM and industrial machine applications that need compact design, reliable motor control, and easy integration. It is suitable for both simple and advanced machine requirements.

2. Is Schneider ATV320 drive suitable for OEM machine builders?
Yes, the Schneider ATV320 drive is designed especially for OEMs who need a practical drive for machine automation, flexible installation, and dependable performance.

3. What are the benefits of ATV320 AC drive?
The ATV320 AC drive offers compact size, embedded safety, strong connectivity, flexible motor compatibility, and reliable performance in demanding machine environments.

4. Is Schneider Altivar Machine drive good for harsh environments?
Yes, the Schneider Altivar Machine drive is built with coated printed circuit boards and can operate in demanding environments, including higher ambient temperatures.

5. What motors are supported by ATV320 VFD drive?
The ATV320 VFD drive supports synchronous, asynchronous, permanent magnet, and BLDC motors, making it suitable for a wide range of machine applications.

6. Does Schneider ATV320 inverter drive support safety functions?
Yes, the Schneider ATV320 inverter drive includes embedded safety functions such as STO, SS1, SLS, SMS, and GDL for safer machine operation.

7. Is Altivar Machine ATV320 drive available in different protection classes?
Yes, the Altivar Machine ATV320 drive is available in IP21, IP65, IP66, UL Type 1, and UL Type 4X versions depending on the model.

8. Can Schneider ATV320 drive be used in compact machine layouts?
Yes, the Schneider ATV320 drive is designed in compact and book-style formats, which makes it suitable for cabinets and machine frames with limited space.

9. Does ATV320 AC drive support communication networks?
Yes, the ATV320 AC drive supports common Ethernet and serial-based industrial communication networks for easier automation integration.

10. Can ATV320 VFD drive help reduce installation cost?
Yes, the ATV320 VFD drive helps reduce installation effort with its compact format, easy integration, and embedded functions designed for machine builders.

11. What applications are suitable for Schneider ATV320 inverter drive?
The Schneider ATV320 inverter drive is suitable for packaging machines, material handling systems, machine tools, hybrid automation systems, and general OEM machinery.

12. Where can I buy Altivar Machine ATV320 drive in India?
You can buy the Altivar Machine ATV320 drive from Eka, a trusted ATV320 drive dealer, distributor, and supplier in India.
