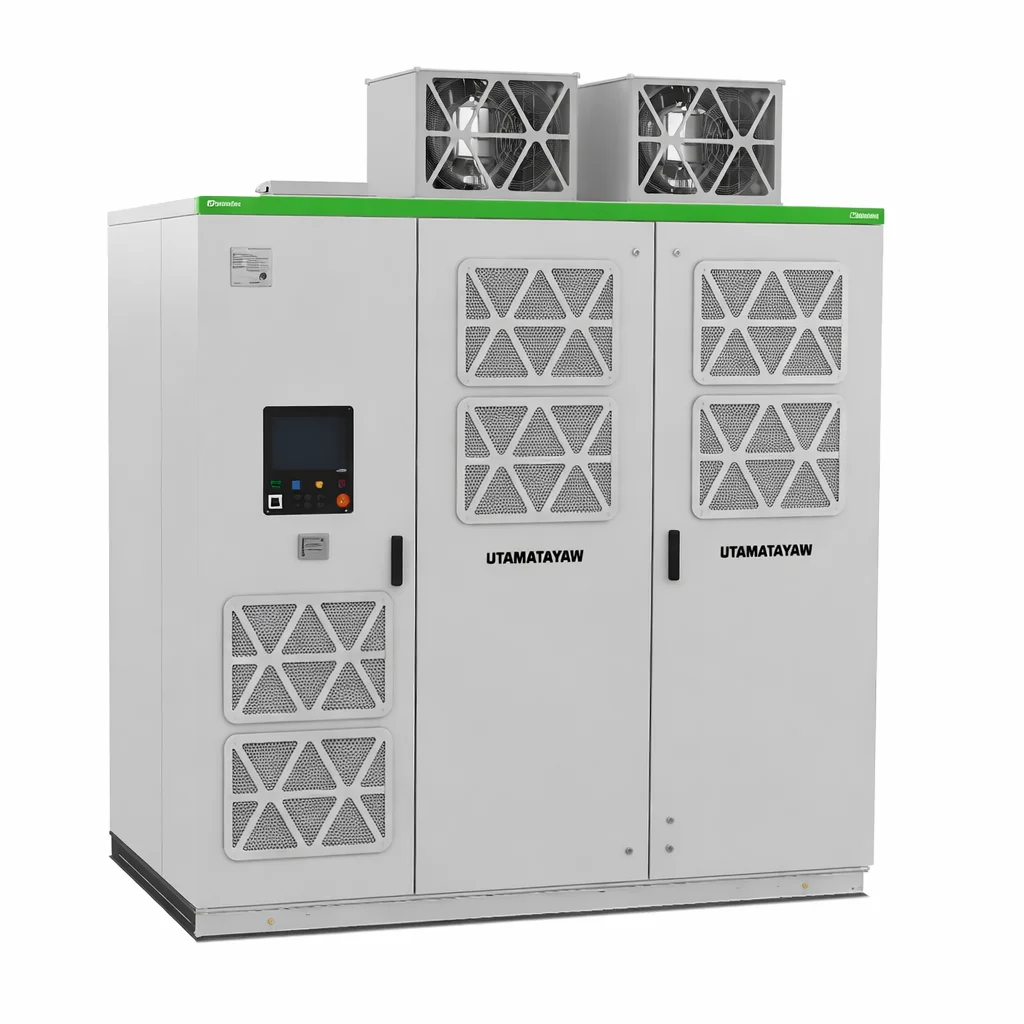

Schneider Altivar Process ATV6100 Drive
Eka, as a trusted ATV6100 drive dealer, distributor, and supplier in India, offers the Schneider Altivar Process ATV6100 drive for medium voltage applications. This ATV6100 medium voltage drive is designed for reliable motor control, compact installation, and efficient operation in pumps, fans, conveyors, mills, and other process applications.
Eka supplies the Altivar Process ATV6100 drive for industries that need a practical and dependable medium voltage solution for general-purpose operations. The Schneider ATV6100 drive is suited for applications where compact design, low harmonic performance, and stable motor control are important. Schneider presents the ATV6100 as a medium-voltage drive for applications up to 8880 kW on its range overview page, while the published brochure/specification material extends the power range from 150 kW to 13,500 kW across voltage classes from 2.4 kV to 11 kV.
The ATV6100 AC drive is a strong fit for water and wastewater, mining and minerals, energy and chemicals, and power generation. It is commonly used for pumps, fans, conveyors, and mills, making it a flexible choice for plants that want easier installation, smoother power quality, and better long-term operating value.
For customers looking for Schneider Altivar Process ATV6100 solutions, Eka supports product selection, supply assistance, and application guidance. Customers searching to buy Schneider ATV6100 drive or compare ATV6100 drive price typically look for a combination of compact footprint, easier maintenance access, remote connectivity, and reliable medium-voltage performance. The drive also has published documentation and brochure support for specification and project planning. This final sentence is partly an inference based on Schneider’s published brochure themes and the existence of current manuals/brochures.
Technical Details
- Drive type: Medium voltage variable frequency drive
- Power range: 150 kW to 13,500 kW in brochure/specification material
- Voltage range: 2.4 kV, 3.3 kV, 4.16 kV, 6 kV, 6.6 kV, 10 kV, 11 kV
- Input: 18 to 54 pulse diode rectifier bridge
- Output: Multilevel PWM with low-voltage IGBT inverter cells
- Motor types: Asynchronous, permanent magnet, externally excited synchronous
- Control modes: U/f and vector control, with or without encoder
- THDi: Below 5%, conforming to IEEE 519-2022
- Input power factor: 0.96 or higher from 20% to 100% load
Key Benefits
- Compact design for easier installation and reduced space requirement
- Reliable medium-voltage performance for general-purpose applications
- Low harmonic performance with THDi below 5% in published specifications
- Strong input power factor across a wide load range
- User-friendly interface and service-friendly design
- Suitable for pumps, fans, conveyors, and mills
- Supports digital connectivity and monitoring
- Flexible motor and control compatibility for different project needs
Why Choose
- Compact medium-voltage solution
The ATV6100 medium voltage drive is positioned for installations where footprint and simpler layout matter. - Designed for general-purpose process use
The Schneider ATV6100 VFD is suitable for multiple industries and applications rather than one narrow use case. - Better power quality support
Published specification material lists THDi below 5% and input power factor of 0.96 or higher from 20% to 100% load. - Flexible motor compatibility
The drive supports asynchronous motors, permanent magnet motors, and externally excited synchronous motors. - Service-friendly construction
Schneider’s brochure highlights front access, modularity, and easier maintenance as value points.
FAQ
1. What is Schneider Altivar Process ATV6100 drive used for?
The Schneider Altivar Process ATV6100 drive is used for medium-voltage applications where reliable control is needed for equipment such as pumps, fans, conveyors, and mills. Schneider positions it for sectors like water and wastewater, mining and minerals, energy and chemicals, and power generation.
2. Is ATV6100 a medium voltage drive?
Yes, the ATV6100 medium voltage drive is a medium voltage variable frequency drive. Schneider describes it as a compact and economical MV drive for general-purpose applications up to 11 kV.
3. What is the power range of Schneider ATV6100 drive?
Schneider’s brochure/specification material lists the Schneider ATV6100 drive from 150 kW to 13,500 kW, while Schneider’s master range page highlights the ATV6100 family for applications up to 8880 kW. That difference appears to reflect different product-summary contexts, so using the brochure figure is safer for technical page content.
4. What voltage range does Altivar Process ATV6100 support?
The Altivar Process ATV6100 drive supports medium-voltage classes including 2.4 kV, 3.3 kV, 4.16 kV, 6 kV, 6.6 kV, 10 kV, and 11 kV. Schneider’s range pages summarize it as covering applications up to 11 kV.
5. Which industries commonly use Schneider Altivar Process ATV6100?
The Schneider Altivar Process ATV6100 is commonly used in water and wastewater, mining and minerals, energy and chemical, and power generation applications.
6. Is ATV6100 suitable for pumps and fans?
Yes, the ATV6100 AC drive is suitable for pumps and fans, and Schneider also associates it with conveyors and mills.
7. What motors can run with Schneider ATV6100 VFD?
The Schneider ATV6100 VFD supports asynchronous motors, permanent magnet motors, and externally excited synchronous motors. It also supports U/f and vector control, with or without an encoder.
8. Does ATV6100 help reduce harmonic distortion?
Yes. Schneider’s published specification material states THDi below 5%, conforming to IEEE 519-2022, and an input power factor of 0.96 or higher from 20% to 100% load.
9. Is Schneider ATV6100 drive easy to maintain?
Schneider presents the ATV6100 as a service-friendly design with front access and a modular structure, aimed at reducing downtime and simplifying maintenance.
10. Can I buy Schneider ATV6100 drive in India?
Yes. Customers in India looking to buy Schneider ATV6100 drive, check ATV6100 drive price, or source supply support can contact Eka for product selection and commercial assistance.
